Understanding Pilon Fractures: Causes, Treatment, and Impact on Ankle Health

Pilon fractures are a distinct type of injury affecting the lower end of the tibia (shinbone), specifically involving the weight-bearing surface of the ankle joint. These fractures often extend to the fibula, the other bone in the lower leg. Typically resulting from high-impact incidents such as motor vehicle accidents or falls from significant heights, pilon fractures are considered severe and can have lasting effects on ankle function. The term "pilon" originates from the French word for "pestle," symbolizing the crushing or splitting nature of the bone often seen in these injuries. Due to the high-energy trauma, the tibia may fracture into multiple fragments or be extensively crushed. In most cases, surgical intervention is required to realign the bone and restore its structure. Because the force required to cause a pilon fracture is substantial, patients often sustain additional injuries that may also necessitate medical attention

Anatomy of the Ankle Joint

The lower leg consists of two primary bones:

• Tibia: Commonly referred to as the shinbone, it is the larger and more prominent bone of the lower leg.
• Fibula: A slender, smaller bone that runs parallel to the tibia.

At the ankle joint, these bones connect with the talus, a small yet critical bone in the foot that functions as a hinge. Together, the tibia, fibula, and talus form the structure of the ankle joint, enabling stability and movement. This structure is integral to the ankle's ability to support weight and provide mobility, emphasizing its importance in overall lower limb function.

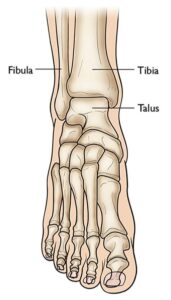

The three bones that come together to form the ankle joint.



Understanding the Severity of Pilon Fractures

Pilon fractures can vary significantly in their complexity. The tibia may sustain a single break or be shattered into multiple fragments. The severity of a pilon fracture is influenced by several key factors:

• Number of Fractures: The extent to which the bone is fractured.
• Bone Fragmentation: The size and quantity of the broken pieces.
• Displacement: The alignment of the fractured pieces. In less severe cases, the bone fragments may remain closely aligned. In more complex fractures, significant gaps or overlapping of the fragments may occur.
• Soft Tissue Damage: Injuries to nearby muscles, tendons, and skin often accompany the fracture.

When a fracture causes bone fragments to pierce the skin or creates an open wound that exposes the bone, it is classified as an "open" or compound fracture. This type of fracture is particularly dangerous due to the increased risk of infection in the bone and surrounding tissue. Immediate medical intervention is critical to minimize the likelihood of infection and ensure proper healing.

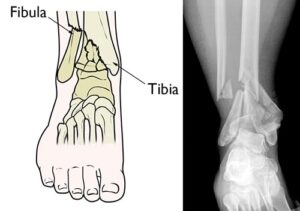

(Left) A pilon fracture often affects both bones of the lower leg. (Right) In this x-ray, both the tibia and fibula are fractured and the pieces of bone are severely displaced.
